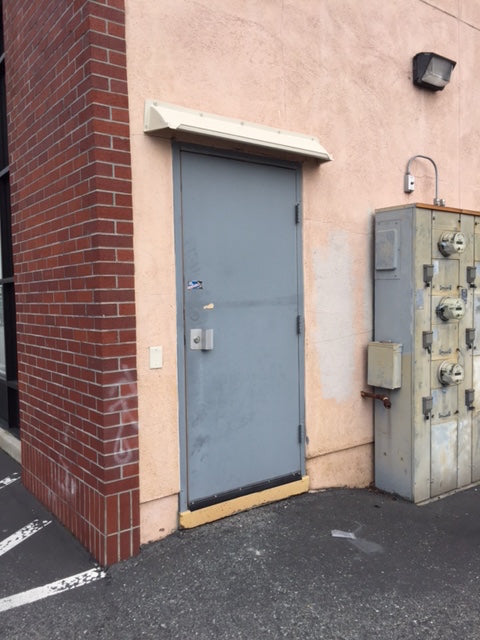

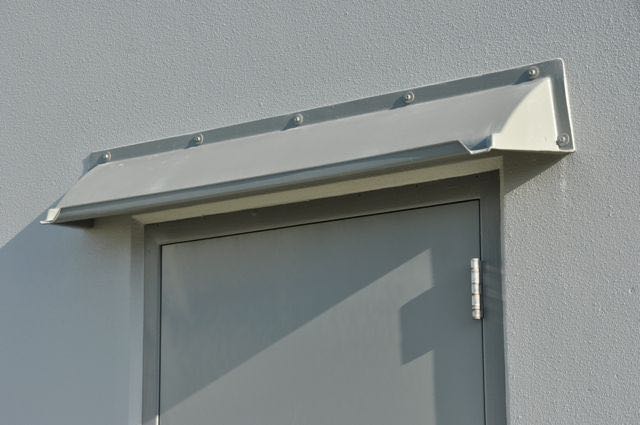

Rain Diverter Over Door - Stops Water Leaking From Above Doors and Windows With Insufficient Overhang Protection. STANDARD WIDTH 52 inch

$248.99 USD

Sale Sold out

Shipping calculated at checkout.

Color Off-white Beige Gray

Add Installation Kit Yes - Includes 1) color matched fasteners 2) drill bit & 3) 100% silicone caulking. No Thank You

Our Best Seller

DOORBRIM Rain diverters are molded from 1/4 inch strong, durable, ABS plastic. Mounting is surface mounted with mechanical fasteners through predrilled holes spaced 12 inched apart in a bed of caulking. Optional color matching fasteners for concrete, plaster, stucco, brick or wood siding are available in a complete installation kit including 100% silicone caulk and a carbide drill bit. Custom sizes are available with the use of intermediate structural brackets allowing unlimited continuous widths. Almond (Off White), Lt Gray and LT Beige factory UV protected colors can be ordered. All sizes and colors are "Proudly Made in the USA", in stock and ship next day. next day.

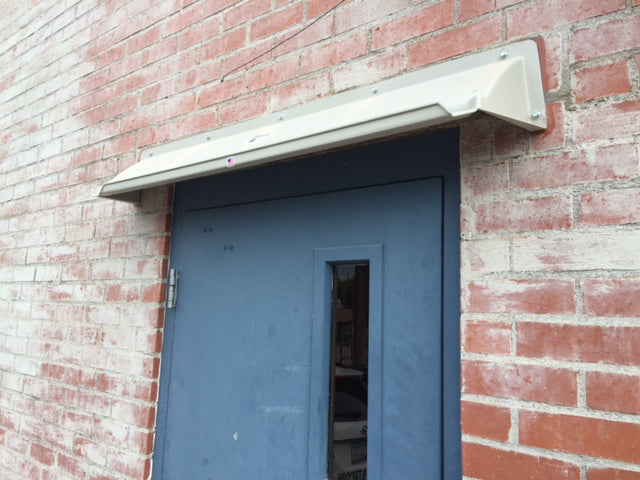

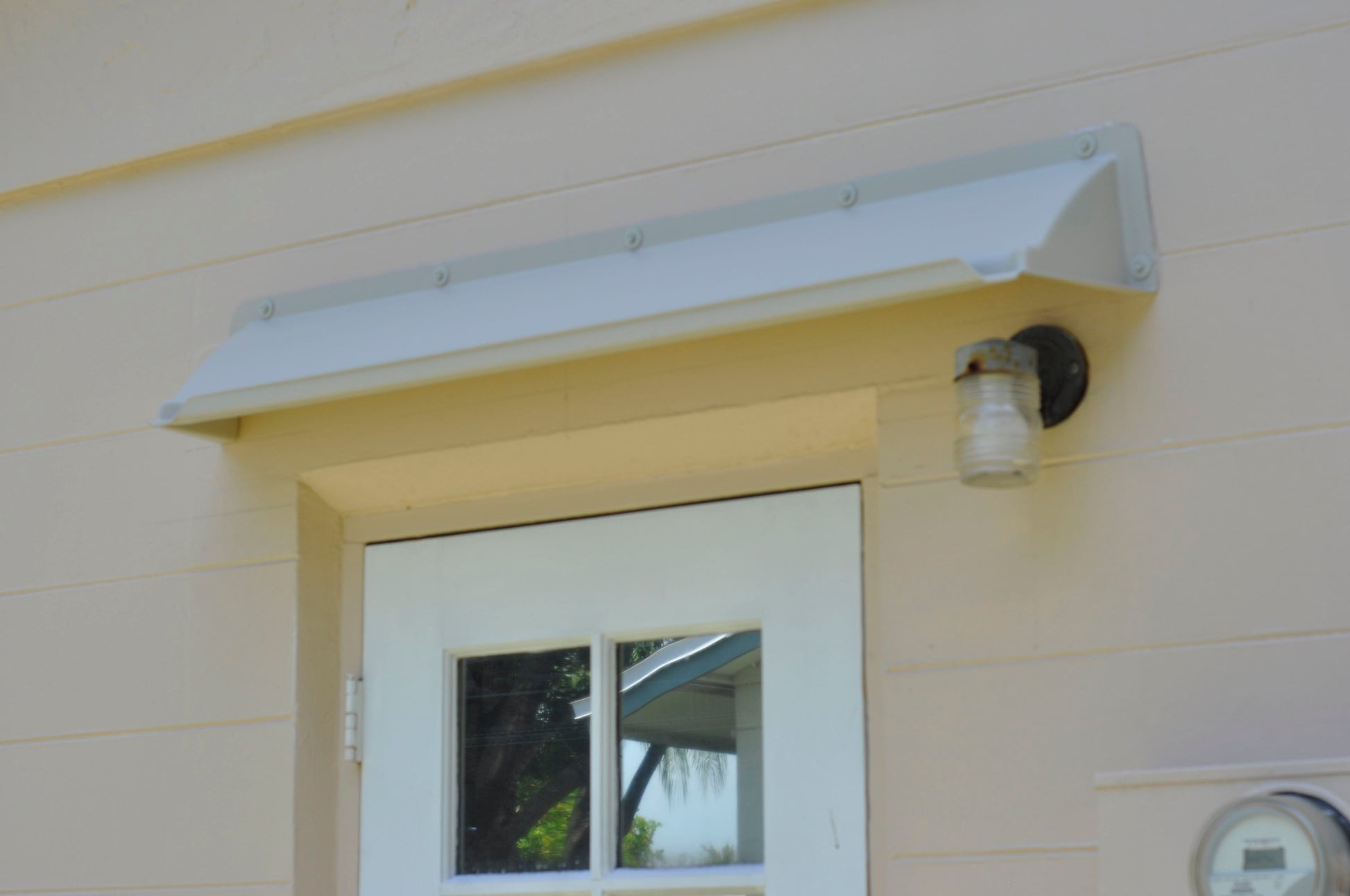

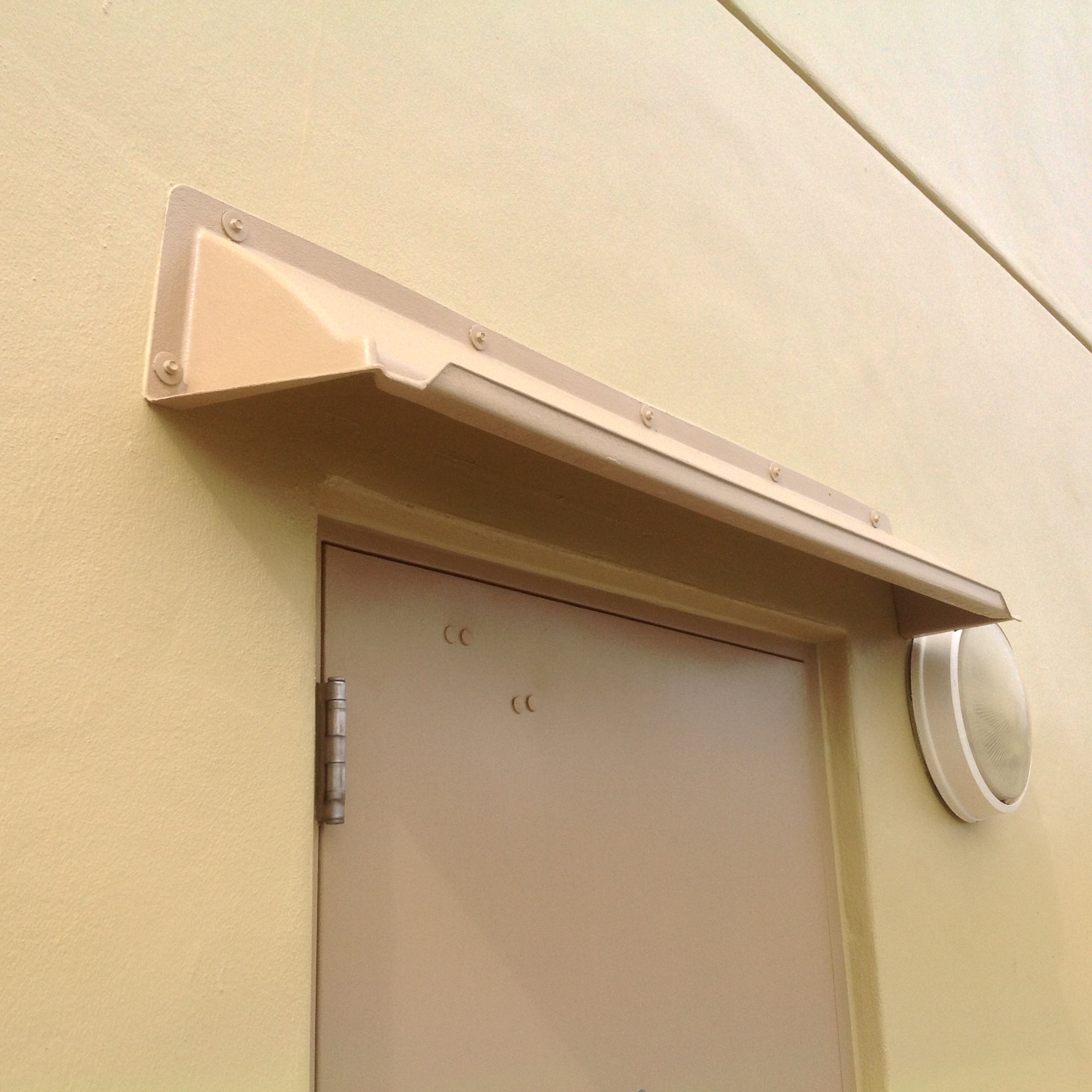

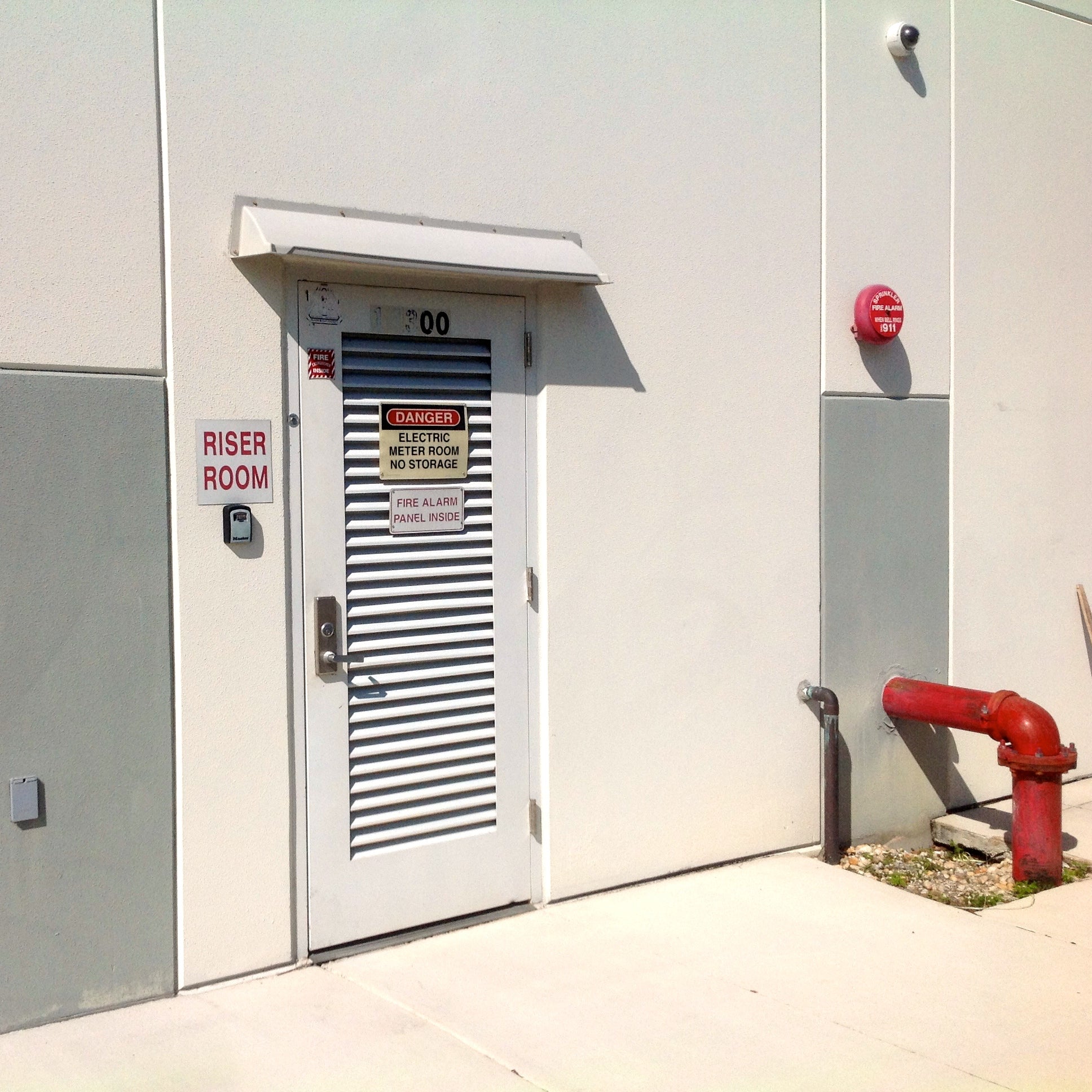

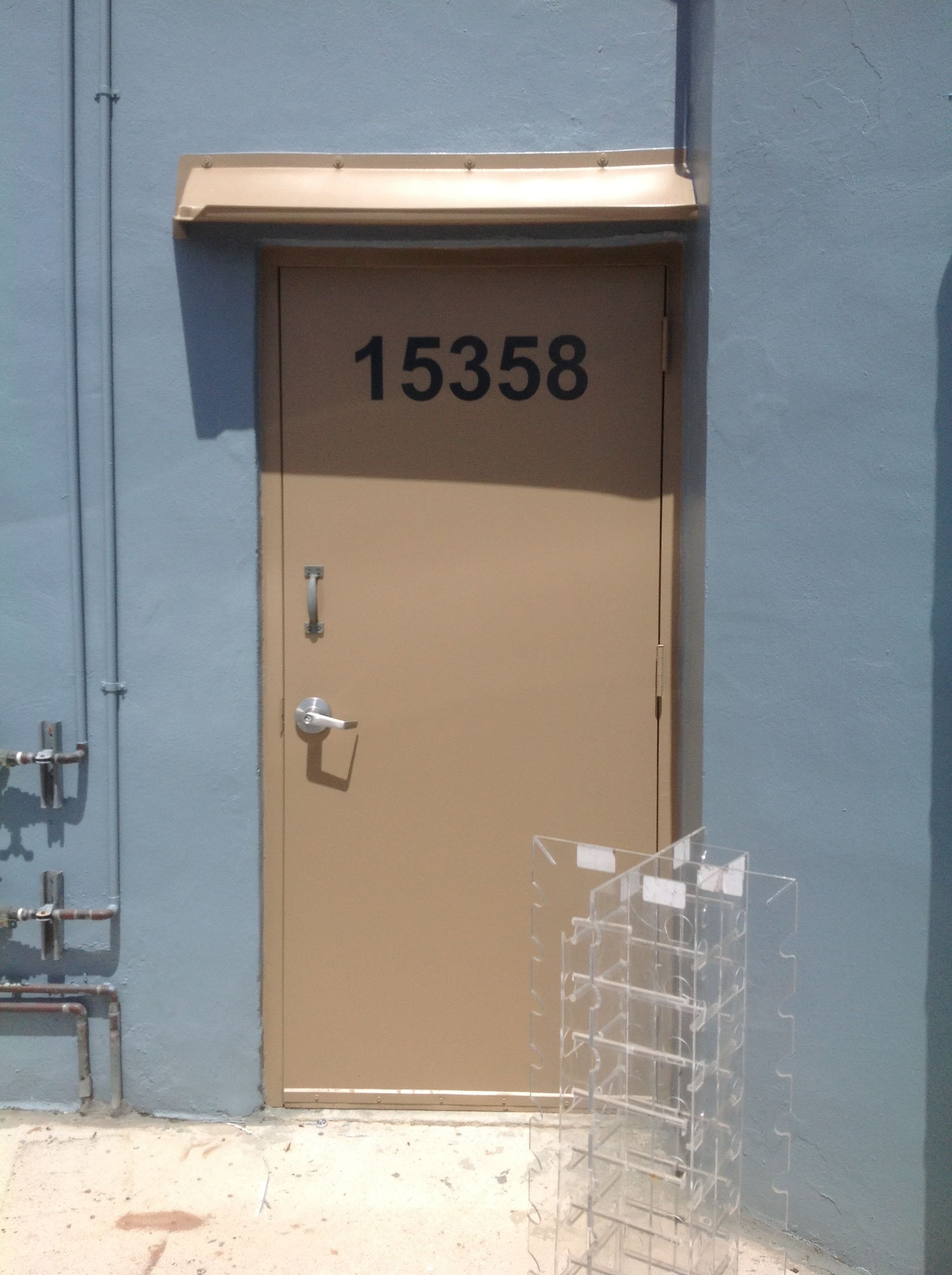

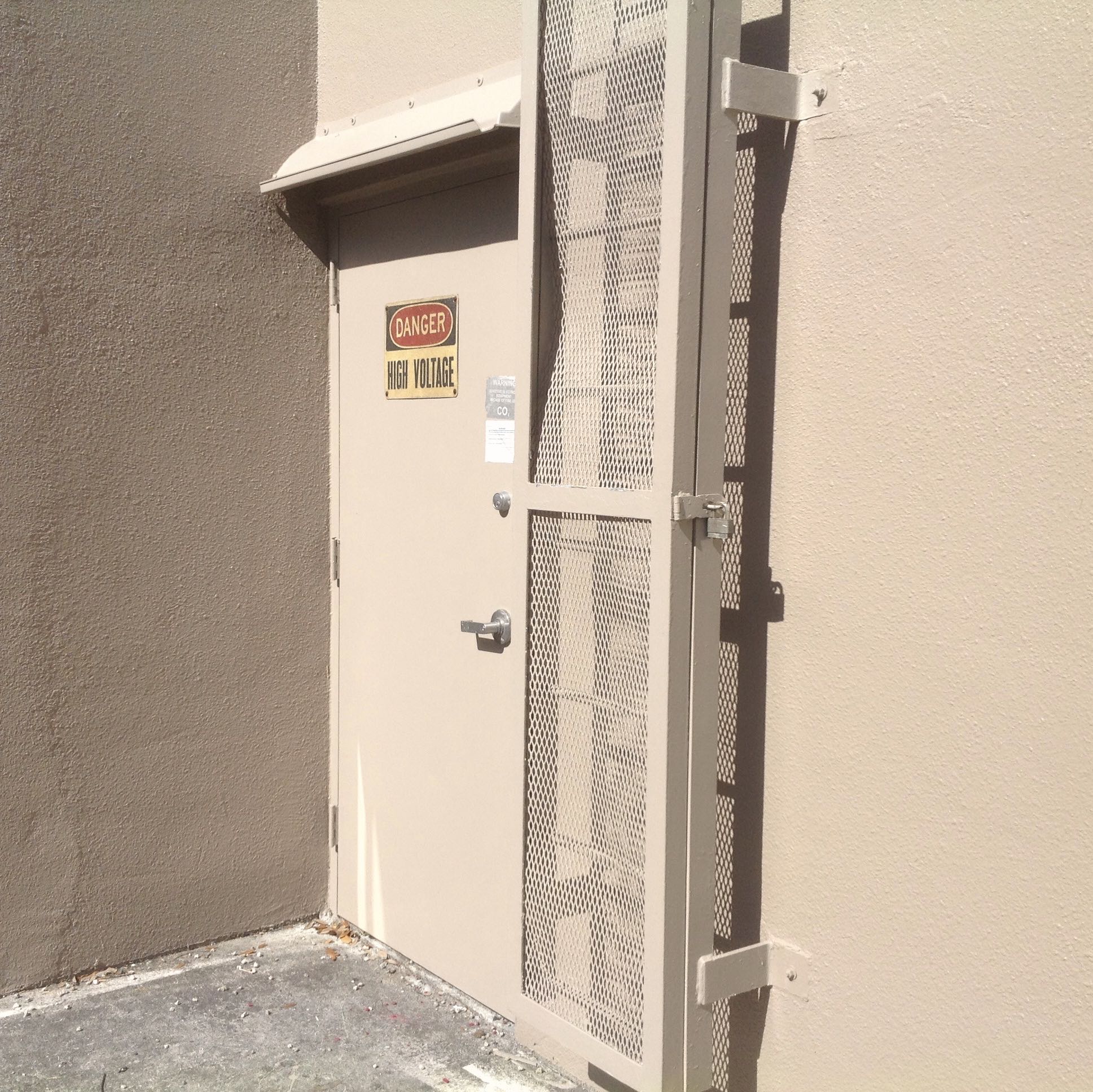

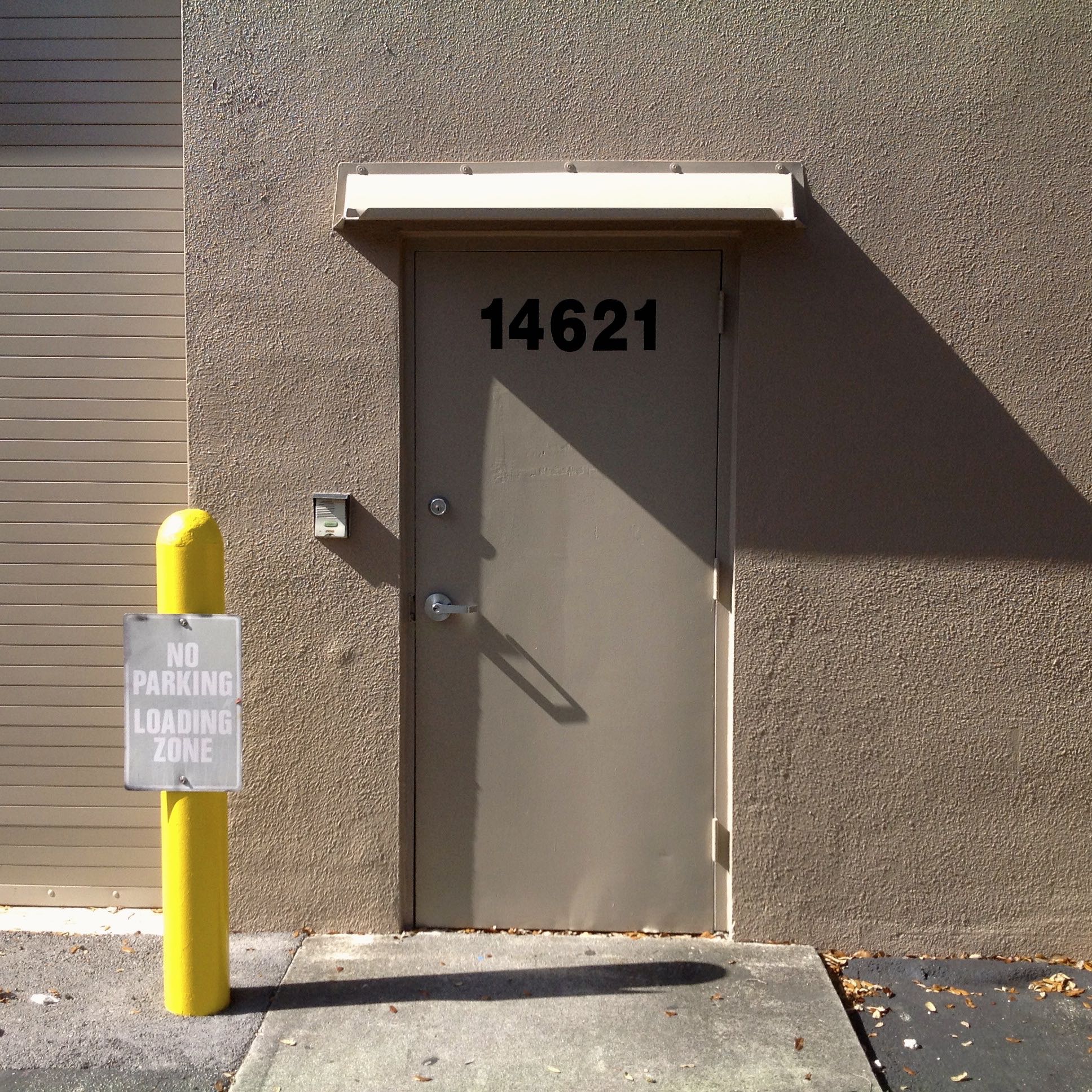

A DOORBRIM storm door rain guard or cap is made of ABS plastic and mounted above a storm door, side door or back door to divert rain water away from the top of the door. A storm door rain guard will also provide the same function on screen doors. Prevents leaks and drips to maintain a safe and dry entrance. An integral front gutter diverts water to stop leaks and drips.

Don't forget to order color matched stainless steel concrete fasteners and accessories for an easy installation.

Email your questions to raindiverterstore@doorbrim.com. You can also email us a photo or sketch with measurements to raindiverterstore@doorbrim.com, if you are unsure of which size to order or need a recommendation.

REQUEST a QUOTE

FAQs

Q: What material is this rain diverter made from?
A: The rain guard is molded from durable 1/4-inch ABS plastic. The finish product is strong and durable to withstand high winds and harsh environments.

Q: How is the rain diverter mounted?
A: It is surface mounted above doors, windows or outdoor electrical equipment with optional color matched mechanical fasteners through predrilled holes. Installation above the top trim header is advised to stop any leaks originating behind the header. The standard width of the rain guard is 52 inches. However custom sizes are available with the use of one or more structural splice brackets.

Q: Are custom sizes available for the rain diverter?
A: Yes, custom sizes are available with intermediate structural brackets to accommodate large windows, double doors and overhead garage doors etc. Factory UV protected colors are available in ALMOND (off-white) BEIGE and GRAY.

Q: What is included in the complete installation kit?
A: The kit includes color matching fasteners, silicone caulk, and a carbide drill bit making an easy DIY installation a breeze.

Q: What is the lead time for ordering and delivery?
A: All rain hood sizes and colors are in stock and available for next day shipping.

Country of Origin

USA

Dimensions

All products are 7 1/2" High and PROJECTION is 7 1/2" from the Wall. STANDARD width is 52" inside to inside. OVERALL width is 54 1/2" including the mounting flange on each side. THICKNESS begins with 1/4" raw material. FINISH THICKNESS varies due to the molding process.

Unlimited custom widths are achieved with the use of intermediate splice brackets

Tools Required

Step ladder
4’ level
Hammer drill
3/8” socket and ratchet
Pencil
Caulking gun

Installation Instructions

Rain diverters can be mounted on concrete, stucco, masonry, brick, wood, vinyl siding or metal surfaces.

Draw a level line above door or window. Using your rain diverter as a template, mark holes, then drill out the holes. Apply caulking to outer flange and screw the rain diverter the to wall with a ratchet and socket. CAUTION: Do not over tighten.

If your rain diverter has a splice bracket, install the bracket first leaving a little play. Caulk the rain diverter flanges and insert into the bracket. Tighten all fasteners.
